Spectra Precision HV101
Description

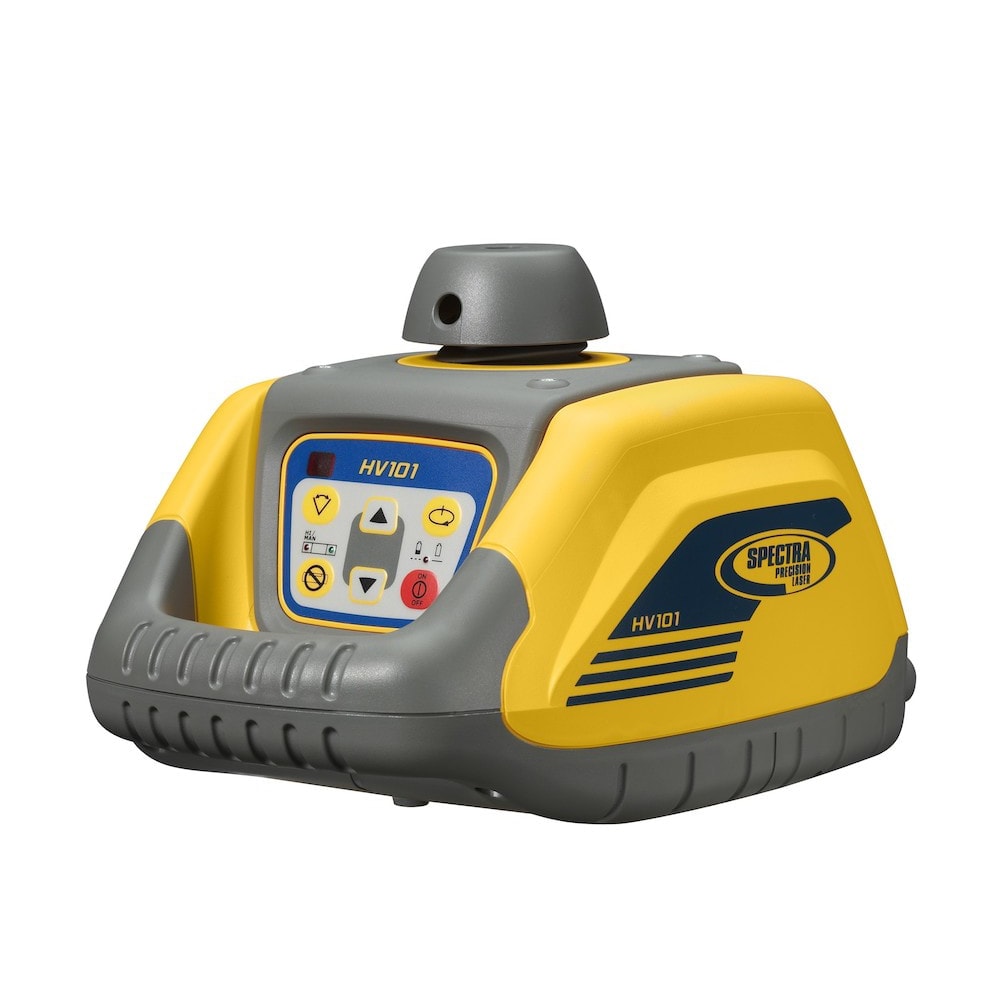

The automatic, self-leveling Spectra Precision® HV101 Interior Laser is a professional tool with an economical price tag. The HV101 laser is capable of handling a wide variety of horizontal, vertical and plumb applications.
It is rugged enough for the toughest jobsite and designed to survive a 3 foot (1 m) drop onto concrete. The HV101 Interior Laser is backed by the industry’s only 2-year instant over the counter exchange warranty.
Gallery
Details
- Automatic self-levelling increases productivity with fast setups and minimal training
- Beam is easily visible even in brightly lit conditions
- Durable construction can withstand tough job site conditions
- Split beam enables plumb point transfer and 90-degree layout
- Remote control offers scanning, speed control, slope setting, and alignment control for fast one person setups 3-year instant over the counter exchange warranty eliminates downtime
- Acoustical ceiling installation
- Drywall installation
- Squaring/layout
- Interior finishing work
- Remodeling
- Residential construction
- Light commercial construction
- Levelling
- Squaring/layout
- Vertical alignment
- Plumb
Specifications
| Laser Source | <5 mW @ 635 nm, Class 3A |
| Laser Accuracy | ±1/8 in at 100 ft (±3 mm at 30 m) (±20 arc seconds) |
| Operating Range | 100 ft (30 m) minimum visual, 1,000 ft (300 m) diameter with receiver |
| Self-Levelling Range | ±5 degrees |
| Compensation Method | Electronic self-levelling |
| Power Source | 2 x “D” Alkaline Batteries |
| Battery Life | 50 hours Alkaline, 45/25 hours user provided Ni-MH/Ni-CD |
| Battery Status LED | Flashing red LED |
| Rotation Speed | Four preset speeds 0, 50, 200, 600 RPM |
| Scan Angles | Five preset angles 3°, 8°, 45°, 90°, 180° |
| Out-of-Level Warning | Rotor stops, laser shuts off, red out-of-level LED flashes |
| Operating Temperature | 23 °F to 113 °F (-5 °C to 45 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Warranty | 3 Year Limited with Instant Exchange |
| Water Resistant | Yes, and IP54 sealing |
| Size | 8.5L × 6.7W × 6.0H in (21.6L × 17.1W × 15.2H cm) |
| Weight | 3.3 lbs (1.5 kg) |
