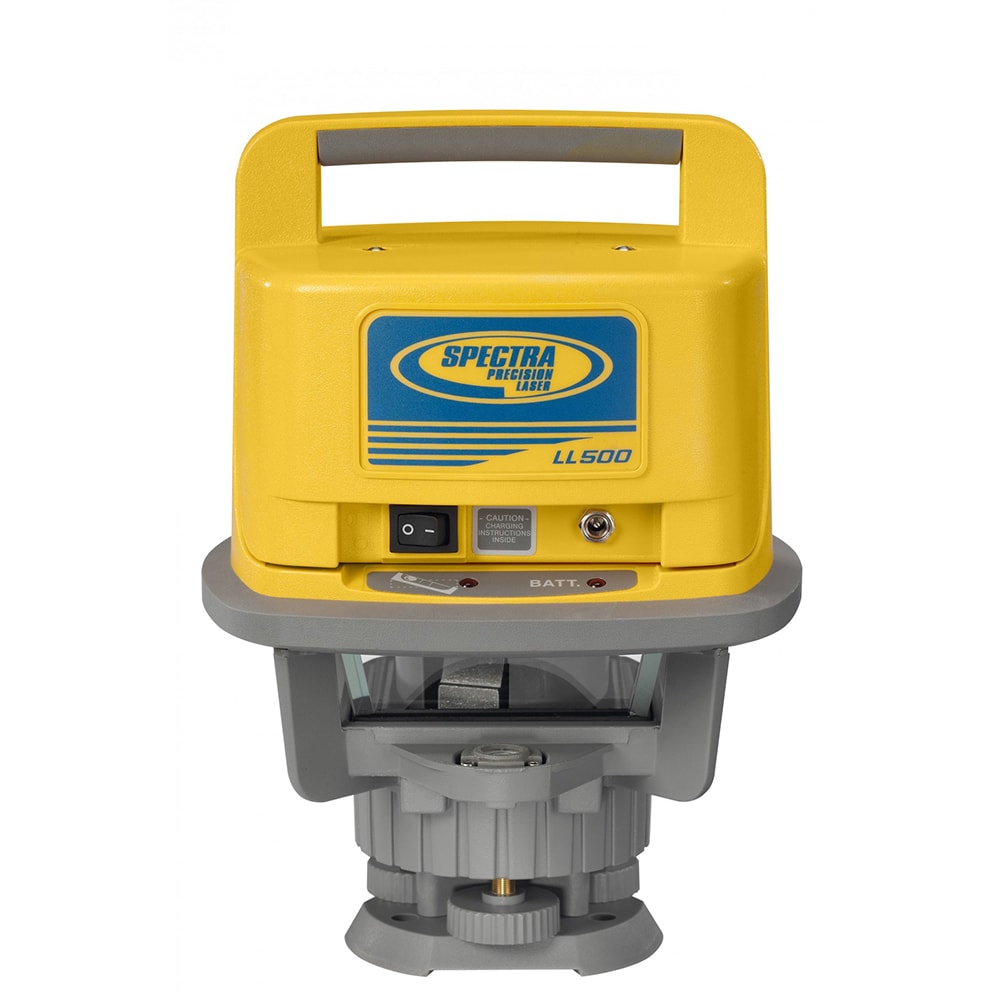

Spectra Precision LL500
Description
The Spectra Precision® LL500 Laser Level is a one-person leveling system designed for longer range measurements across your entire site. Accurate, stable and reliable, the LL500 Laser Level features a 1,600 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site.
The rugged LL500 is self-leveling with built-in ‘out-of-level’ shutoff that maintains accuracy over the entire work area and minimizes errors. Visible “spotting” beam determines receiver mounting placement makes it faster to find the on-grade position.
Gallery
Details
- High accuracy with temperature compensation provides highly stable, repeatable accuracy even under large temperature changes
- Alkaline or rechargeable batteries keep the unit working and minimise downtime due to power loss
- Self-levelling with built-in shut off for increased accuracy over the entire work area and reduced errors
- Comes with choice of HL700 or CR600 receivers so you can choose the best option to suit your application
- Checking and adjusting elevations
- Taking grade shots
- Excavating cutting depth
- Basement excavation
- Digging septic tanks
- Checking foundations
- Digging footings
- Setting forms
- Checking sub-base materials
- Screeding concrete
- Slope on grade
Specifications
| Self-Levelling Range | ± 11 arc minutes |
| Compensation Type | Wire Hung, Air Damped |
| Accuracy | 1.5 mm at 30 m (1/16 in at 100 ft) ±10 arc seconds |
| Temperature Compensation | Yes |
| Laser Type | 670 nm visible, Class II |
| Machine Control Compatible | Yes |
| Battery Life 20°C (68°F) | 4 D-Cell Alkaline – 175 hrs, NiMH – 100 hrs, NiCad – 75 hrs |
| Operating Diameter | 500 m (1,600 ft) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Weight | 3.6 kg (8 lbs) |
| Tripod Mount | 5/8 in x 11 |
| Warranty | 5 Years ‘No Cost Repair’ |
| Drop Warranty | 3 feet |
